CLIMA Cassava Starch Processing Machine - Concentrating Section

Producing Process
Flow Chart
Wash & Crushing Section
Screening Section
Concentrating Section
Drying Section
Physical Chemistry Request




Concentrating Section

The crashed material is sent to centrifugal sieve through pump to extract starch and separate potato residues. Centrifugal sieve group are 4 or 5 stages, the front stages is to extract starch and the last stage is to dewater the potato residue. The whole stage adopts countercurrent washing to get the best results and saving water.

Cassava residue is sent out of workshop after separation of residue slurry for further processing. Starch slurry reaches starch hydrocyclone group to refine starch.

18 stages hydrocyclone is usually adopted for cassava starch and is divided into three functional areas, which are starch washing, recycling and concentration area. The concentration of starch discharged from the last stage can reach 23Be 。 And protein is less than 0.1%.

Concentrating Section
Equipment Required
First grade Vertical screen HIGH-level dense Pulp tank ¢ 1.8(including mixer)
20 º dense Pulp tank ¢ 1.8(including mixer)
Elevator conveyor8 ºdiluted Pulp tank ¢ 1.8(including mixer)
First grade stainless concentrating separator
Scrape used water tank
80IND-20 stainless Pulp pump
70 sand removing device
Scraper centrifugal
Fittings of Dishing type centrifugal
Control cabinet
Dishing type centrifugal
Scrape sliding seat

    Featuring Equipment Exhibition

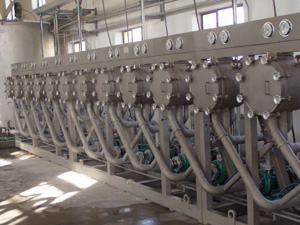

Starch Hydrocyclone

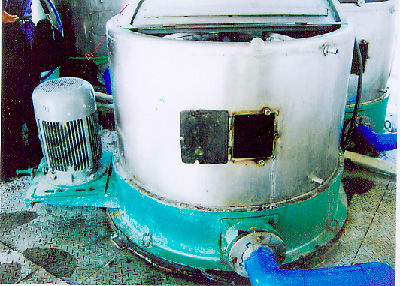

Cassava Starch Vertical Centrifual

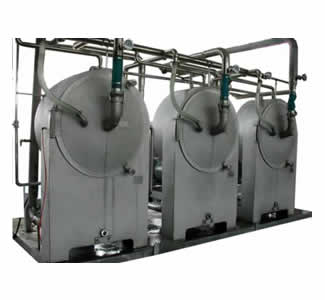

Centrifugal Sieve

Cassava Starch Vacuum Filter

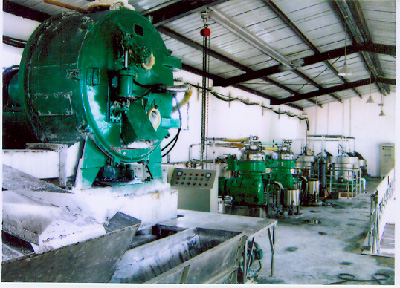

Scraping Cutter Centrifugal
