Screening Section

Screening Section
Equipment Required
First grade Vertical screen	Second grade vertical screen	First grade stainless pulp residue tank ￠ 1.8
Third grade stainless pulp residue tank ￠ 1.8	Second grade stainless Pulp residue tank ￠ 1.8	Residue Presser
Fine screen	Pulper crusher	Crusher waste water tank
High pressure cleaing bump	80IND-30 stainless Pulp residue tank ￠ 1.8	Pulp stainless pulp tank with mixer
Control cabinet	Pulp distrubting pipes system	Stainless Pulp residue pump
Screening pipeline

Featuring Equipment Exhibition

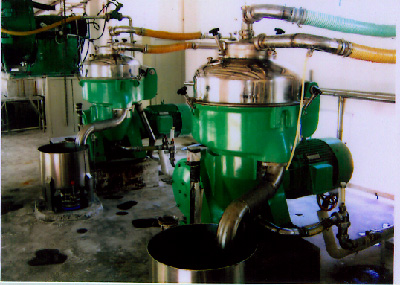

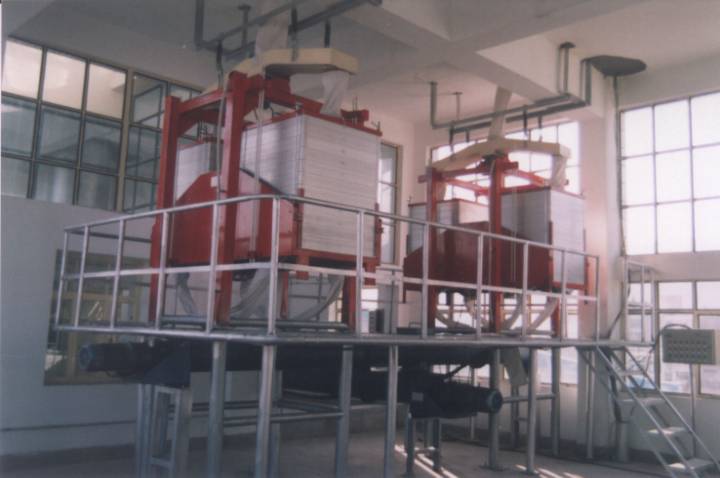

High Efficiency Starch Sifter		Cassava Starch Separator

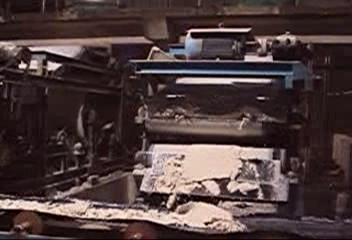

Residue presser		Cassava Starch Sifter
